KN Controls 700 Hygienic

Kraus & Naimer Controls KN-C 700 Hygienic Serie HMI Touchpanel Food & Beverage

Highest demands in sensitive areas of industry

The food & beverage, pharmaceutical and chemical sectors are very different environments compared to the industrial world. Although the set up of the production facilities might seem similar, there are a series of much higher legislative requirements and guidelines (DIN EN 60529).

The rugged stainless-steel front and the polyester coated glass surface of the Hygienic series allows high hygienic standards. The IP69 protection standard devices are acid resistant, high pressure-water resistant up to 176°F. Display and gasket comply with DIN EN1672-2, EHEDG and the recommendations of FDA 21 CFR 177.2006.

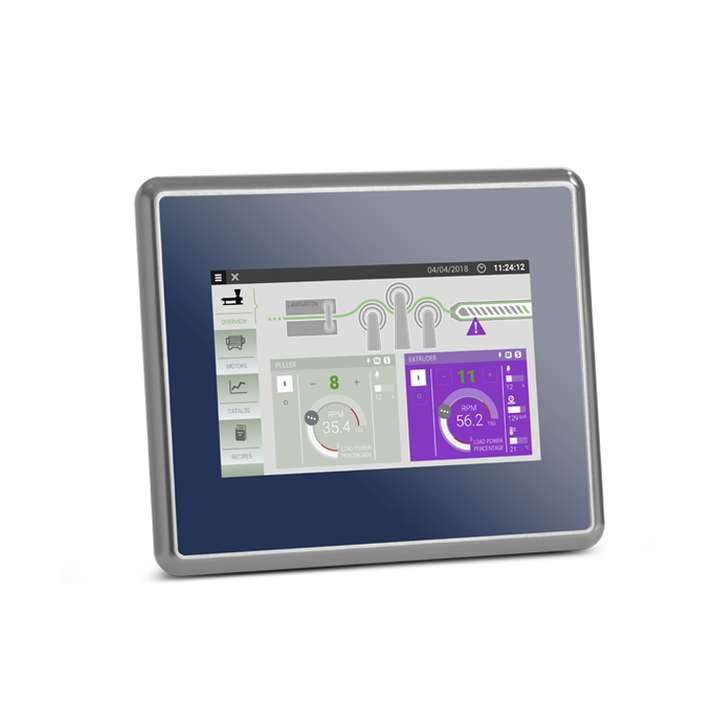

KN Controls, KN-C 707 Hygienic, 7 Zoll Touchpanel

KN-C.707.Hygienic

7“ Display
Resolution 800 x 480 Pixel (WVGA)
Linux RT, ARM Cortex-A9 Dual Core 800 MHz
3 x Ethernet-Ports, 2 x 2.0 Host Ports
1 x Serial port (RS-232/422/485) configurable via software

KN-C.707.Hygienic

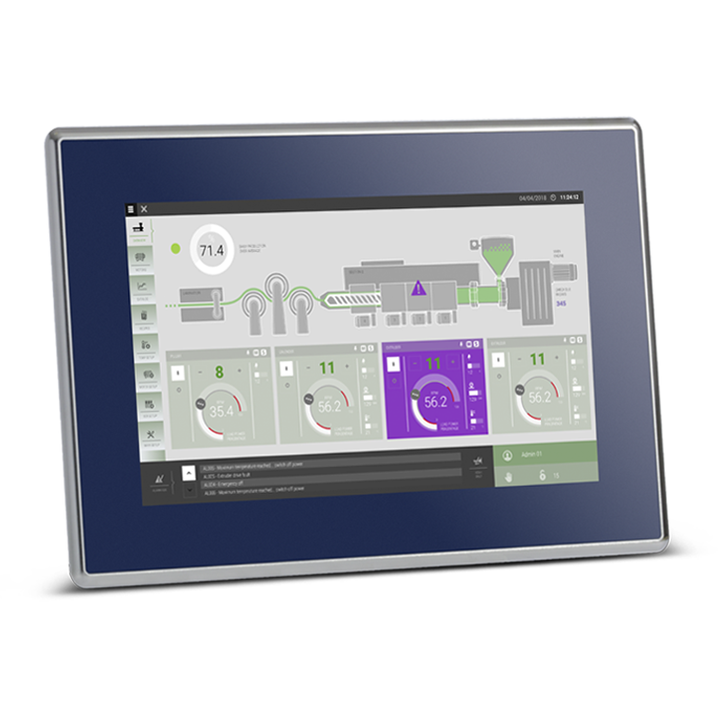

KN Controls, KN-C 715 Hygienic, 15 Zoll Touchpanel

KN-C.715.Hygienic

15“ Display
Resolution 1366 x 768 Pixel (WVGA)
Linux RT, ARM Cortex-A9 Quad Core 800 MHz
3 x Ethernet-Ports, 2 x 2.0 Host Ports
1 x Serial port (RS-232/422/485) configurable via software

KN-C.715.Hygienic
